Description

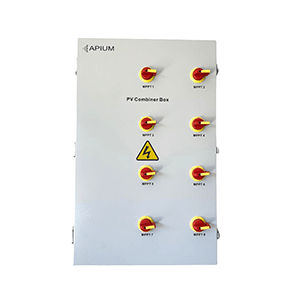

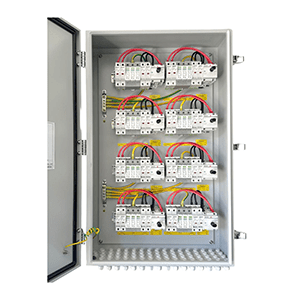

Apium Combiner Box 2x50kW 16 in 16 out DC
- 8k SCCR
- Up to 16 input circuits
- Rated for 1000 VDC
- Integrated load break disconnects, Max up to 32A
General Data
- Model No: BHS-16/16
- Input: 16 string
- Output: 16 string
- Maximum Voltage; 1000V
- Max DC Short Circuit Current Per Input(Isc): 15A(Changeable)
- Maximum Current Output: 32A
DC Surge Arrester: BUD-40/3
- Max Operation Voltage(Ucpv): 1000V
- Standard Compliance with: IEC/EN 61643-31
- Maximum Discharge Current: 40KA
- Certification: CE
Enclosure
- Material Type:Metal
- Degree of Protection: IP65
- Degree of Resistance to Impacts: IK 10
- Dimension (WxHxD): 500*450*180mm
- Cable input Entry: 2.5-10mm2
- Output Cable Gland: 2.5-10mm2
DC fuse holder: OSPV-30
- Rated Working Voltage: 1000V
- Fuse Link: OSPV-30 In=15A DC 1000V
- Certification: CE/TUV
- Breaking capacity: 50kA
DC Switch Disconnector: BYSS.2-32
- Rated Insulation Voltage(Ui):1000V
- Rated Current(le): 32A
- Standard Compliance with: IEC60947-3:2015
- Certification: CE/TUV
- Rated conditional short-circuit current(KA): 8kA
Environment
- Operating Temperature: -20℃~+60℃
- Humidity: 99%
- Altitude: 2000M
- Installation: Wall Mounting
