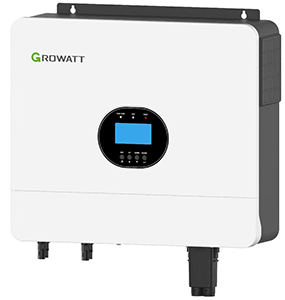

Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES Plus
Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES Plus is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features:
- Output power factor up to 1.0
- 2 times peak power ability
- Grid and Generator two AC inputs with integrated transfer switch
- Up to 6 units in parallel for capacity extension
- Plug-and-play quick connection PV terminals
- Support WiFi and GPRS remote monitoring
- Timing charging and output control
- Built in dust-proof kit for harsh environment
- Pure sine wave AC output
- Solar and utility grid can power loads at the same time
- With CAN/RS485 for BMS communication
- WIFI/ GPRS remote monitoring (optional)
Inverter Output:
- Battery Voltage: 48VDC
- Battery Type: Lithium/Lead-Acid
- Rated Power: 6000VA/6000W
- Parallel Capability: Yes, 6 units maximum
- Surge Power: 12000VA
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC – 450VDC
- Max. Input current per MPP tracker: 16A
- Maximum Solar Charger Current: 100A
AC Charger:
- Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
WARNING! All wiring must be performed by a qualified person.
