Hubble Battery LiFePO4 1.2kW 12.8V S-100A

SKU: T0004124

If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, please email onlineorders@voltex.co.za PLEASE NOTE: All Warrantees will be null and void should this unit not have been installed by a qualified electrician with a Certificate of Compliance attached. A walk in warrantee is offered which is subject to our suppliers service procedures.

R5,995.00 (incl. VAT)

Secure Payments

Click & Collect

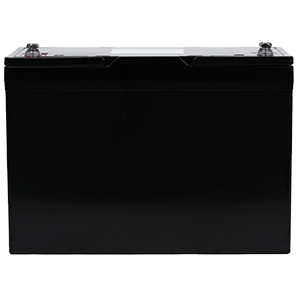

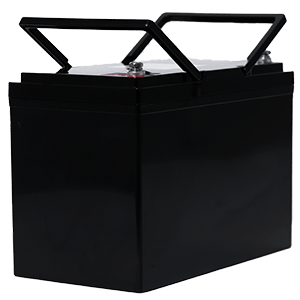

Hubble Battery LiFePO4 1.2kW 12.8V S-100A

The Hubble Battery LiFePO4 1.2kW 12.8V S-100A is the latest addition to our S series and is a high performance lead-acid drop-in replacement succeeding the popular S-120 Series

  • Specification: 12.8V 1.2KWH
  • Rating: 1C
  • Maximum continuous discharge: 100A
  • Cells: 1st life prismatic LiFePO4
  • Series: 1, 2, 3 or 4 batteries
  • Parallel: Up to 16 batteries in 48V configuration
  • Communication: None​
  • CAN Bus: No
  • Hubble Cloudlink Ready: No

Features:

  • Low self discharge
  • High cycle and service life
  • 1C High performance lithium battery
  • Internal battery management system
  • Excellent high temperature performance
  • High energy density and conversion efficiency
  • Can be configured in 12V, 24V, 36V or 48V in series
  • BMS protects internal cells and ensures smooth operation
  • Built in protection for over-charge, over-discharge and over-temperature
  •  Compatible with most UPS and Inverters using AGM/VRLA charge setting
  • Perfect replacement Lithium solution for upgrading your lead acid installation
  • Can parallel up to 16 batteries in 47V configuration. 4 in series and 4 in parallel

Technical Specifications:

  • Rated Capacity (5HR): 100Ah
  • Nominal Voltage: 12.8 V
  • Discharge Ending Voltage: 12V
  • Charging Limited Voltage: 14V
  • Max. Charging Current: 100A
  • Max. Continuous Discharging Current: 100A
  • Cell C Rating: 1.0C
  • Weight: Approx. 10.5kg
  • Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries
  • Parallel: Parallel connection is up to 4 strings
  • Dimensions (W x D x H): 305mm x 170mm x 220 mm
  • Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank
  • Cells: 1st LiFe Prismatic LiFePO4
  • Design Life: +/- 15 years
  • Cycle Life @ 1C: +/- 4000 Cycles
  • Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
  • Outer Package Material: Black Polypropylene Plastic
  • Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
  • Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
  • IP Rating: IP65
