Description
The ECT400 is a Battery Powered Crimping Tool with an OLED Display showing Crimping Time, electricity Quantity, Maintenance Reminding and Fault Code. The ECT400 Crimping head rotates 350˚, and has a two stage hydraulic system with fast feed and power control. The ECT400 also has an an automatic retraction function when the crimp is completed.
Features:
- OLED Display showing Crimping Time, Electricity Quantity, Maintenance Reminding and Fault Code
- Crimping head rotates 350°
- Two stage hydraulic system with fast feed and power control
- Quick motor stop guarantees highest safety for the operator
- Automatic retraction when crimp is completed
- Electronic control and monitor of crimping operation
- Ergonomic design and optimized position of center of gravity
- Rated pressure: 120KN
- Oil capacity: 160ml
- Stroke: 42mm
- 5 – 8 seconds per cycle time
- Max crimping: Copper 400mm² / Aluminium 300mm²

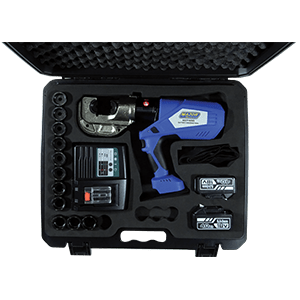

- Accessories:
- Crimping Dies: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²
- 2x 4.0Ah Lithium Batteries
- 1x Charger
- 1x Carrying Case
