Voltex > Products > Circuit Breakers > Surge Arrestors > Schneider Easy9 Surge Arrestor Din 1 Pole+Neutral 20kA 1.3kV 36mm EZ9L33620

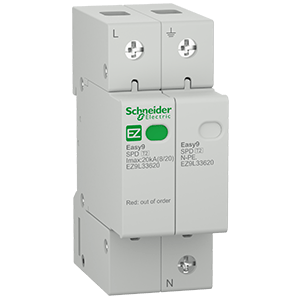

Schneider Easy9 Surge Arrestor Din 1 Pole+Neutral 20kA 1.3kV 36mm EZ9L33620

Schneider Easy9 Surge Arrestor Din 1 Pole+Neutral 20kA 1.3kV 36mm EZ9L33620

R450.00 (incl. VAT)


If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, please email onlineorders@voltex.co.za

STEP 2:
Add to Wishlist
SKU: E0010804 Categories: , Tag:

Description

This Easy9 product is a surge arrester. This product, according to Imax maximum discharge current of 20kA, is recommended for a medium risk level. It can be associated with a 25A and C curve tripping circuit breaker. The Uc maximum continuous operating voltage is 275VAC. The In nominal discharge current is 10kA. The Up maximum voltage protection level is 1.3kV It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. According to IEC 60529 standard, the degree of protection is IP40 in modular enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -5°C to 70°C. This product complies with IEC 61643-11 standard.

Additional information

Weight 0.216 kg
Dimensions 10.3 × 3.6 × 9 cm
Brand
