Description

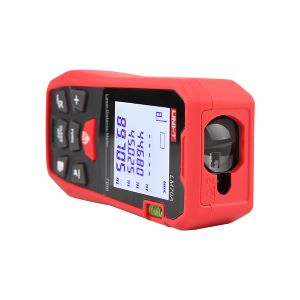

Uni-T Laser Distance Meter LM100A
- The new LM A series laser distance meters are new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups data.
- These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.
Features:
- Ergonomic exterior, comfortable handling
- Millimeter accuracy
- 99 groups data storage
- Quick, self calculation with real-time readout
- Physical leveler(Horizontal and vertical)
- Multiple functions: Max/Min/continuous measurement, data storage, etc
Applications:
- Volume measurement
- Area measurement
Specifications:
| Specifications | LM50A | LM70A | LM100A | LM120A |
| Certifications | RoHS | |||
| Display size | 2.0-inches | |||
| Range | 50m | 70m | 100m | 120m |
| Display type | LCD | |||
| Min. display unit | 0.001m | |||
| Measurement units | m/ft/in | |||
| Measurement basis | front/rear | |||
| Accuracy | ±(2mm+5 x 10-5D) | |||
| Laser class | 2 | |||
| Laser type | 630~670nm, ﹤1mW | |||
| Features | ||||
| Single measurement | √ | |||
| Continuous measurement | √ | |||
| Max/Min/Area | √ | |||
| Volume | √ | |||
| Pythagoras | √ | |||
| Add/Subtract | √ | |||
| Self calibration | √ | |||
| Horizontal bubble | √ | |||
| Data storage | 99 groups | |||
| Auto power off | 3 minutes without operation | |||
| Auto laser off | 30s without operation | |||
| Storage temperature | -20℃~60℃ | |||
| Operating temperature | 0℃~40℃ | |||
