Description

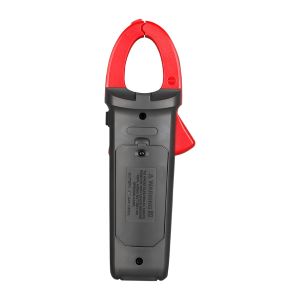

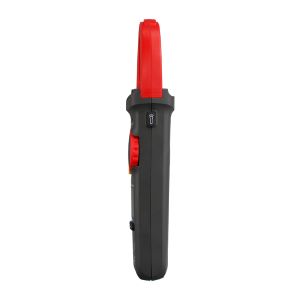

Uni-T TRMS Clamp Meter 400A UT213C
- UT213 series is 400A digital clamp meter with CAT III 600V safety standards.
- These meters are designed for electricians and HVAC/R technicians.
- The built-in flashlight also makes these meters useful tools when working in dark environments.
Features:
- Auto range
- Relative mode
- NCV/continuity buzzer
- Data hold/LCD backlight
- Flashlight
- Low battery indication: ≤3.6V
- Input protection
- Auto power off
Applications:
- AC current measurement
- DC current measurement
- Diode measurement
- AC voltage measurement
Specifications:
| Specifications | Range | UT213A | UT213B | UT213C |
| AC current (A) | 400A | ±(1.8%+9) | ±(1.8%+9) | ±(2.5%+5) |
| DC current (A) | 400A | ±(2%+3) | ||
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+5) | ||
| 40mF | ±(4%+5) | ±(4%+5) | ||
| Frequency | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) |
| Temperature | -40℃~1000℃ | ±(1%+3) | ±(1%+3) | |
| -40℉~1832℉ | ±(1%+6) | ±(1%+6) | ||
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | ||
| Diode | Around 1.5V | Around 3.0V | Around 3.0V | |
| NCV | √ | √ | √ | |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| MAX/MIN | √ | √ | ||
| LCD backlight | √ | √ | √ | |
| Flashlight | √ | √ | √ | |
| Auto power off | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Input protection | √ | √ | √ | |
| Input impedance for DCV | √ | √ | √ | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 38mm x 24mm | |||
| Product net weight | Red and grey | |||
| Product color | UT213A/B: 280g; UT213C: 231.7g | |||
| Product size | 220mm x 75mm x 40mm | |||
| Standard accessories | Batteries, test leads (UT213B/UT213C), point contact temperature probe (UT213B/UT213C) | |||
| Standard individual packing | Gift box, carrying bag, English manual | |||
